Paper Container Recycling System
| Specifications |
| Compatible containers |
Milk cartons
Paper cups
Paper beverage containers |
| Processing capacity |
200 kg/h |
A-Tech proposes a new product that contributes to the creation of a resources recycling society.
The paper container recycling system performs pulverizing, sorting, washing, and drying processes for the recycling of waste paper containers and paper containers returned to manufacturers, ranging from milk cartons and paper beverage containers to paper cups.

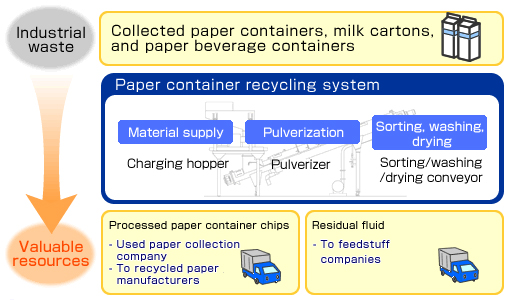

Recycling Flow

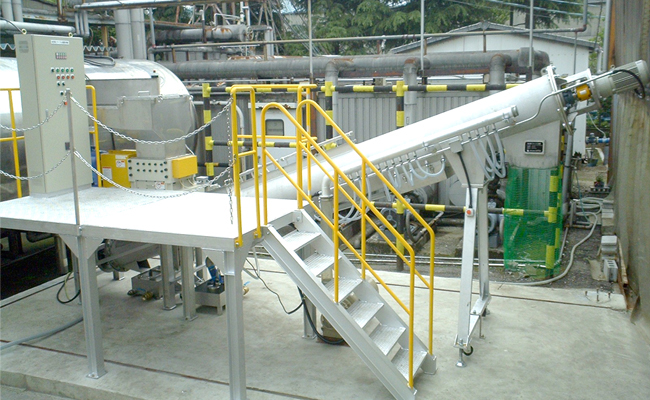

System
Features of System
- Pulverizes paper containers into the size suitable for recycling.
The 2-axis pulverizer cuts paper containers into a size of approximately 40 mm by 50 mm.
- Separates residual fluid to minimize the wastewater treatment load.
Residual fluid can be removed before it mixes with washing water. The collected residual fluid can be mixed into feedstuff for recycling.
- Thorough washing of paper container chips.
The system sprays water while paper container chips are transported by the rotating screw, thus achieving thorough cleaning.
- Air jet stream for thorough drying of paper container chips.
Air jet stream is used to dry washed paper container chips thoroughly.
- Robust construction ensures stable processing and transportation of friction-causing paper material.
The special stainless steel screw conveyor boasts high durability and excellent transport stability.
- Enclosed process for excellent sanitation and easy cleaning.
Separation of residual fluid and paper containers, washing and drying are all performed inside the enclosed screw conveyor equipment on the line. This ensures a high level of sanitation and allows easy cleaning of the inside and outside of the equipment.

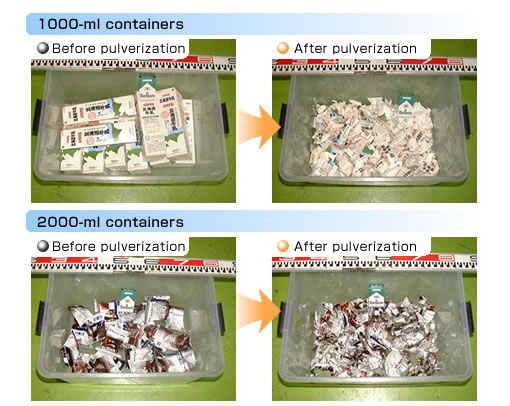

Examples of Pulverization and Washing
