Hot Air Generating Furnace

Hot Air Generating Furnace

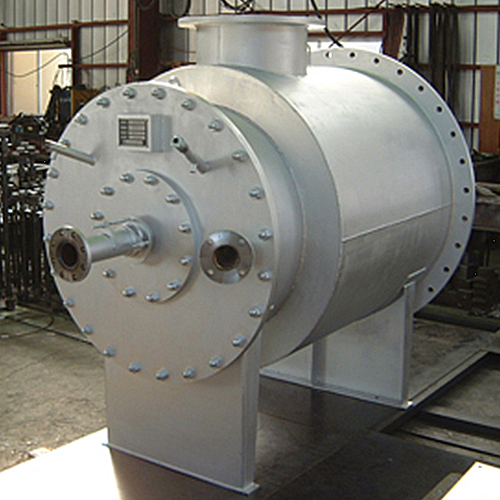

Our hot air generating furnace “HIMEC” features compact design, wide range of heat-load capacity (20 to 100MJ/m³/h).
These characteristics are realized by combustion technology for gas turbine combustors, developed by our experiences.
In addition to the above, thin air layer wall made by inner wall enables stable low temperature, approx. 500°C or lower.

Features

  1. Rapid heating and cooling is possible.
    Since no refractory is used, rapid heating/cooling is possible.
    Thus, frequent repetition of "operation mode" and "non-operation mode" is applicable.
    Furthermore, deterioration trouble caused by spalling and/or exfoliation does not occur in assembly, due to no refractory use.
  2. Quick temperature response
    The performance of temperature response is excellent, then temperature can be returned to specified level.
    Even in abrupt load fluctuation, small amount of heat accumulation results in the above.
  3. Low contaminant level
    Since refractory is not used, hot air does not contain dusts caused by refractory.
  4. Light weight and small size
    Compact design of this system enables flexible installation.
    Furthermore, minimized site construction work can be realized by pre-assembling at shop.
  5. Fuel type
    The system can use a fuel other than special low-calorie gas.
  6. Hot air temperature
    The temperature of generated hot air reaches 1,000°C.

Applications

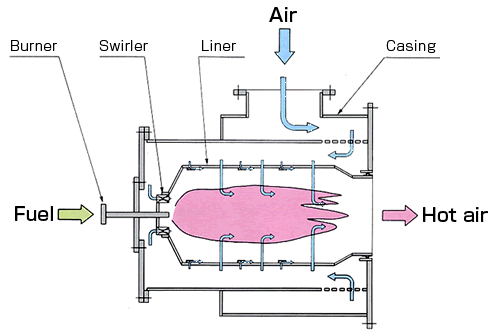

Structure

Structure

Standard Dimensions

Standard Dimensions

型番 燃焼量
(kJ/h)		 A
（mm）		 B
（mm）
HM50K 2,093,000 660 450
HM100K 4,186,000 870 630
HM300K 12,558,000 1,320 1,070
HM500K 20,930,000 1,790 1,400
HM800K 33,488,000 2,020 1,720
HM1000K 41,860,000 2,330 1,950
